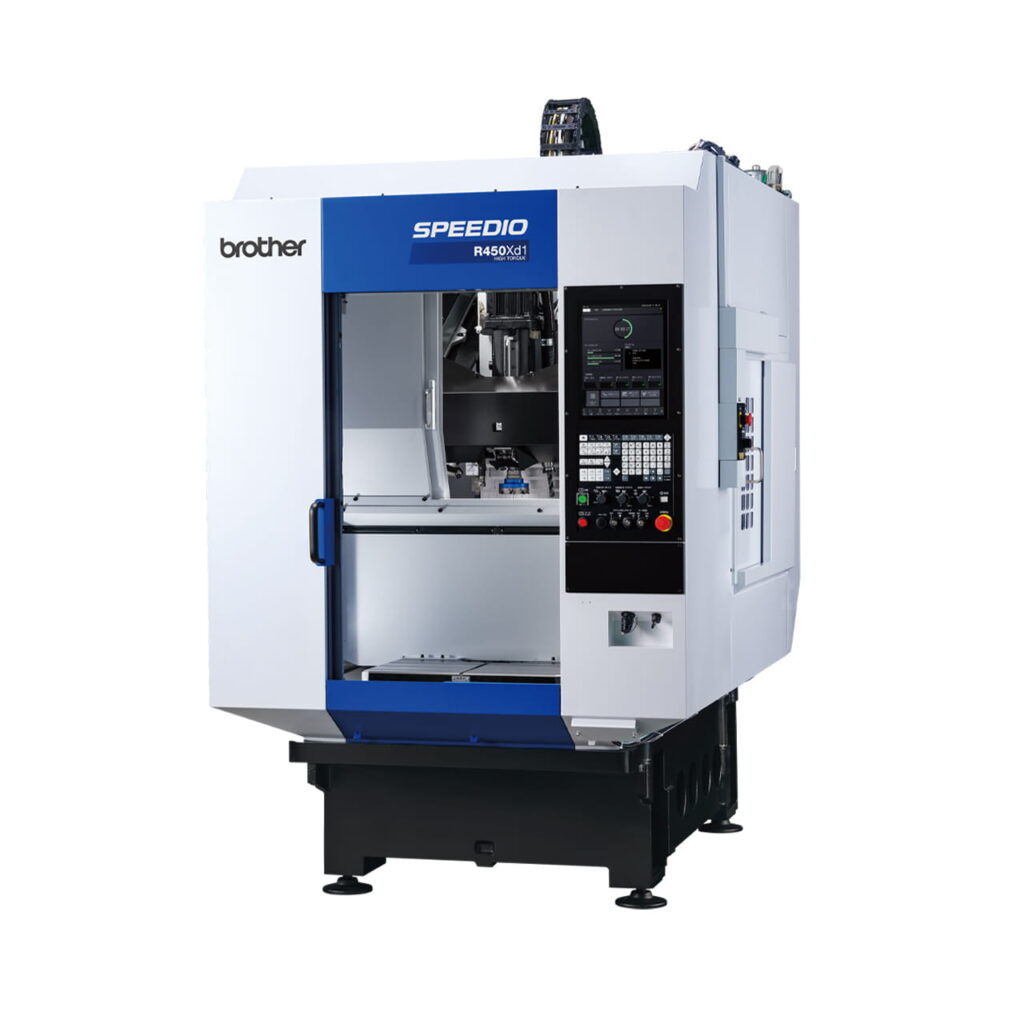

SPEEDIO R450Xd1
Pallet Changing Compact Machining Center
- Pallet Changer
- 14 Tool Magazine
- 22 Tool Magazine
- 28 Tool Magazine
Seleziona variante
Informazioni
| Max. spindle speed [min⁻¹] | 10,000/ (Optional) 16,000/ (Optional) 10,000 high-torque |
|---|---|
| Travels [mm (inch)] | X: 450(17.7) Y: 320(12.6) Z: 305(12.0) |
| Tool storage capacity [pcs.] | 14/ 21/ 28 |
| Rapid traverse rate (XYZ axes) [m/min (inch/min)] | 50 x 50 x 50 (1,969 x 1,969 x 1,969) |
| Required floor space [mm (inch)] | 1,400 x 2,609 [3,448] (55.1 x 102.7 [135.7] ) |
| BT dual contact spindle(BIG-PLUS) | Optional |
| Coolant Through Spindle(CTS) | Optional |
| Low table | Optional |
QT Table QT table achieves high productivity, eliminating waste in workpiece change time
The QT table is Brother’s original high-speed 2-face pallet changer.
With a wide jig area and a high degree of reliability, the QT table enables non-stop machining to achieve high productivity.
With a wide jig area and a high degree of reliability, the QT table enables non-stop machining to achieve high productivity.
Productivity Magazines with extensive variation Overwhelming high productivity through machine/controller integrated development
Including a newly developed 28-tool magazine, a 40-tool magazine with a maximum storage capacity is available in response to a variety of machining needs.
Overwhelming high productivity is achieved by utilizing advantages of machine/controller integrated development, including optimized and faster simultaneous operation and tool change operation.
Overwhelming high productivity is achieved by utilizing advantages of machine/controller integrated development, including optimized and faster simultaneous operation and tool change operation.
Machining Capability Provides broad cutting performance from high-speed and highly efficient machining to heavy-duty machining
High rigidity based on a special design and use of a high-torque spindle motor achieves stable machining while demonstrating high machining capability.
NC Controller Equipped with new “CNC-D00” controller Enhanced usability with 15-inch LCD touch panel
Intuitive operation is possible with new apps and vertical touch panel screen. Relevant functions are grouped according to purpose, such as setup and machining, leading to efficient operation. Production and operation states are visualized, allowing faster understanding. Waste-free operation is possible in setup, machining adjustment, production, and recovery process, leading to improved work efficiency and operating rate.
| item | item | item | R450Xd1 / R450Xd1 RD *12 | R650Xd1 / R650Xd1 RD *12 14/22/28 tool magazine | R650Xd1 / R650Xd1 RD *12 40-tool magazine |
|---|---|---|---|---|---|
| CNC unit | CNC unit | CNC unit | CNC-D00 | CNC-D00 | CNC-D00 |
| Travels | X axis [mm (inch)] | X axis [mm (inch)] | 450 (17.7) | 650 (25.6) | 650 (25.6) |
| Travels | Y axis [mm (inch)] | Y axis [mm (inch)] | 320 (12.6) *7 | 400 (15.7) | 400 (15.7) |
| Travels | Z axis [mm (inch)] | Z axis [mm (inch)] | 305 (12.0) | 305 (12.0) | 435 (17.1) |
| Travels | Distance between table top and spindle nose end [mm (inch)] | Distance between table top and spindle nose end [mm (inch)] | 200-505 (7.9-19.9) [280-585 (11.0-23.0) *8 | 250-555 (9.8-21.8) [350-655 (13.8-25.8) *8] | 250-685 (9.8-27.0) [350-785 (13.8-30.9) *8] |
| Table | Work area size [mm (inch)] | Work area size [mm (inch)] | One face 600 x 300 (23.6 x 11.8) | One face 800 x 400 (31.5 x 15.7) | One face 800 x 400 (31.5 x 15.7) |
| Table | Max.loading capacity (uniform load) [kg (lbs)] | Max.loading capacity (uniform load) [kg (lbs)] | One face 120 (265) [200 (441) *6] | One face 200 (441) [300 (661) *6] | One face 200 (441) [300 (661) *6] |
| Table | Position time [sec.] | Position time [sec.] | 2.7 *11 | 3.1 *11 | 3.1 *11 |
| Spindle | Spindle speed [min-1] | Spindle speed [min-1] | 10,000min-1 specifications : 1 - 10,000 16,000min-1 specifications(Optional) : 1 - 16,000 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 | 10,000min-1 specifications : 1 - 10,000 16,000min-1 specifications(Optional) : 1 - 16,000 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 | 10,000min-1 specifications : 1 - 10,000 16,000min-1 specifications(Optional) : 1 - 16,000 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 |
| Spindle | Speed during tapping [min-1] | Speed during tapping [min-1] | MAX. 6,000 | MAX. 6,000 | MAX. 6,000 |
| Spindle | Tapered hole | Tapered hole | 7/24 tapered No.30 | 7/24 tapered No.30 | 7/24 tapered No.30 |
| Spindle | BT dual contact system (BIG-PLUS) | BT dual contact system (BIG-PLUS) | Optional | Optional | Optional |
| Spindle | Coolant Through Spindle (CTS) | Coolant Through Spindle (CTS) | Optional | Optional | Optional |
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | 50 x 50 x 50 (1,969 x 1,969 x 1,969) | 50 x 50 x 50 (1,969 x 1,969 x 1,969) | 50 x 50 x 50 (1,969 x 1,969 x 1,969) |
| Feed rate | Cutting feed rate [mm/min (inch/min)] | Cutting feed rate [mm/min (inch/min)] | X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9 | X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9 | X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9 |
| ATC unit | Tool shank type | Tool shank type | MAS-BT30 | MAS-BT30 | MAS-BT30 |
| ATC unit | Pull stud type *4 | Pull stud type *4 | MAS-P30T-2 | MAS-P30T-2 | MAS-P30T-2 |
| ATC unit | Tool storage capacity [pcs.] | Tool storage capacity [pcs.] | 14/22/28 | 14/22/28 | 40 |
| ATC unit | Max.tool length [mm (inch)] | Max.tool length [mm (inch)] | 200 (7.9) | 200 (7.9) | 250 (9.8) |
| ATC unit | Max.tool diameter [mm (inch)] | Max.tool diameter [mm (inch)] | 80 (3.1) | 80 (3.1) | 55 (2.1) / 125 (4.9) No adjacent tool |
| ATC unit | Max.tool weight [kg (lbs)] *1 | Max.tool weight [kg (lbs)] *1 | 3.0 (6.6) (total tool weight : 25 (55.1) for 14-tool, 40 (88.2) for 22/28 tool) | 3.0 (6.6) (total tool weight: 25 (55.1) for 14-tool, 40 (88.2) for 22/28 tool) | 4.0 (8.8) (total tool weight: 80 (176.3)) |
| ATC unit | Tool selection method | Tool selection method | Random short cut method | Random short cut method | Double arm method (random closet path) |
| Tool change time *5 | Tool To Tool [sec.] | Tool To Tool [sec.] | 0.6 / 0.7 (14-tool / 22 or 28 tool) | 0.6 / 0.8 (14-tool / 22 or 28 tool) | 0.9 |
| Tool change time *5 | Chip To Chip [sec.] | Chip To Chip [sec.] | 1.3 / 1.5 (14-tool / 22 or 28 tool) | 1.4 / 1.5 (14-tool / 22 or 28 tool) | 2.5 |
| Electric motor | Main spindle motor (10 min/continuous)[kW] *2 | Main spindle motor (10 min/continuous)[kW] *2 | 10,000min-1 specifications : 10.1/7.0 16,000min-1 specifications(Optional) : 7.4/5.1 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 | 10,000min-1 specifications : 10.1/7.0 16,000min-1 specifications(Optional) : 7.4/5.1 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 | 10,000min-1 specifications : 10.1/7.0 16,000min-1 specifications(Optional) : 7.4/5.1 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 |
| Electric motor | Axis feed motor [kW] | Axis feed motor [kW] | X, Y axis : 1.0 , Z axis : 1.8 | X, Y axis : 1.0 , Z axis : 1.8 | X, Y axis : 1.0 , Z axis : 1.8 |
| Power source | Power supply | Power supply | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% |
| Power source | Power capacity (continuous) [kVA] | Power capacity (continuous) [kVA] | 10,000min-1 specifications : 9.5 16,000min-1 specifications(Optional) : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4 | 10,000min-1 specifications : 9.5 16,000min-1 specifications(Optional) : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4 | 10,000min-1 specifications : 9.5 16,000min-1 specifications(Optional) : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4 |
| Power source | Air supply | Regular air pressure [MPa] | 0.4 - 0.6 (recommended value: 0.5MPa *10) | 0.4 - 0.6 (recommended value: 0.5MPa *10) | 0.4 - 0.6 (recommended value: 0.5MPa *10) |
| Power source | Air supply | Required flow [L/min] | 45 | 45 | 100 |
| Machine dimensions | Height [mm (inch)] | Height [mm (inch)] | 2,584 (101.7) | 2,704 (106.5) | 2,704 (106.5) |
| Machine dimensions | Required floor space *13 [with control unit door open] [mm (inch)] | Required floor space *13 [with control unit door open] [mm (inch)] | 1,400 x 2,609 [3,448] (55.1 x 102.7 [135.7] ) | 1,830 x 3,029 [3,868] (72.0 x 119.3 [152.3] ) | 2,145 x 3,029 [3,868] (84.4 x 119.3 [152.3] ) |
| Machine dimensions | Weight (including control unit, machine cover) [kg (lbs)] | Weight (including control unit, machine cover) [kg (lbs)] | 2,750 (6,063) | 3,550 (7,826) | 4,150 (9,149) |
| Accuracy*3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)] | Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)] | 0.006 - 0.020 (0.00024 - 0.00079) | 0.006 - 0.020 (0.00024 - 0.00079) | 0.006 - 0.020 (0.00024 - 0.00079) |
| Accuracy*3 | Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | Less than 0.004 (0.00016) | Less than 0.004 (0.00016) | Less than 0.004 (0.00016) |
| Front door | Front door | Front door | 2doors | 2doors | 2doors |
| Standard accessories | Standard accessories | Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.], leveling plate (4 pcs.) [R650Xd1: 5 pcs.] | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.], leveling plate (4 pcs.) [R650Xd1: 5 pcs.] | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.], leveling plate (4 pcs.) [R650Xd1: 5 pcs.] |
| Item | R450Xd1 | R650Xd1 |
|---|---|---|
| Type | 0 deg./180 deg. turntable system | 0 deg./180 deg. turntable system |
| Table dimension [mm (inch)] | One face 600 x 420 (23.6 x 16.5) | One face 800 x 535 (31.5 x 21.1) |
| Max. turning diameter [mm (inch)] | D1,020 (40.2) [D1,100 (43.3)] *14 | D1,250 (49.2) [D1,300 (51.2)] *14 |
| Max. jig height [mm (inch)] | 300 (11.8) [380 (15.0)] *8 | 350 (13.8) [450 (17.7)] *8 |
| Table work area size [mm (inch)] | One face 600 x 300 (23.6 x 11.8) | One face 800 x 400 (31.5 x 15.7) |
| Max. loading capacity [kg (lds)] | One face 120 (265) [200 (441)] *6 | One face 200 (441) [300 (661)] *6 |
| Rated table load inertia for turning axis [kg·m2] | One face 14.2 [23.5] *6 | One face 35.8 [53.7] *6 |
| Table turning system | AC servo motor(1kW) Worm gear(total speed reduction ratio:1/50) | AC servo motor(0.82kW) Worm gear(total speed reduction ratio:1/60) |
| Table position time | 2.7 *11 | 3.1 *11 |
| Table change repeatability [mm (inch)] | 0.005 (0.0002) (in the X,Y, and Z axes directions 270(10.6) from the center of rotation) | 0.005 (0.0002) (in the X,Y, and Z axes directions 335(13.2) from the center of rotation) |
| CNC model | CNC model | CNC-D00 |
|---|---|---|
| Control axes | Control axes | 7 axes (X, Y, Z, four additional axes) |
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, A, B) |
| Simultaneously controlled axes | Interpolation | Linear : 4 axes (X, Y, Z, one additional axis) Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
| Least input increment | Least input increment | 0.001mm、0.0001inch、0.001 deg. |
| Max.programmable dimension | Max.programmable dimension | ±999999.999mm、±99999.9999inch |
| Display | Display | 15-inch color LCD touch display |
| Memory capacity | Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank) |
| External communication | External communication | USB memory interface, Ethernet, RS232C (optional) |
| No.of registrable programs | No.of registrable programs | 4,000 (Total capacity of program and data bank) |
| Program format | Program format | NC language, conversation (changed by parameter) Conversation from conversation program to NC language program available |
| Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key < optional > Spindle override |
|---|---|
| Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
| Measurement | Automatic workpiece measurement *1 Tool length measurement |
| High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation < optional > High accuracy mode BII (Look-ahead 1,000 blocks, smooth path offset) |
| Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Heat expansion compensation system ll (X, Y, and Z axes) Production performance display Tool life / Spare tool |
| Maintenance | Tap return function Status log Alarm log Operation log Motor insulation resistance measurement Tool washing filter with filter clogging detection Breake load test |
| Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD) < optional > CC-Link, master station CC-Link, remote device station PROFIBUS DP, slave DeviceNet, slave PROFINET, slave EtherNet/IP, slave |
| Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay |
| Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Power consumption Recovery support Inspection PLC |
| Accessories | File viewer Notebook Calculator Register shortcut Display off |
| Functions limited to NC language | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Operation in tape mode Multiple skip function < optional > Submicron command *2 Interrupt type macro Rotary fixture offset Fixture coordinates setting *3 Involute interpolation |
| Functions limited to conversation | Operation program Schedule program Automatic tool selection Automatic cutting condition setting Automatic tool length compensation setting Automatic cutter compensation setting Automatic calculation of unknown number input Machining order control |
Precision equipment
Watch/clock plate
L-shaped bracket
Valve

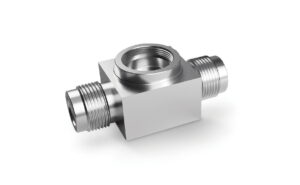

Gas control valve

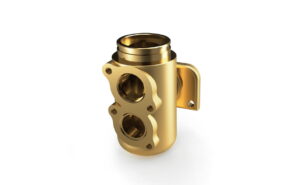

Hot-water supply valve
