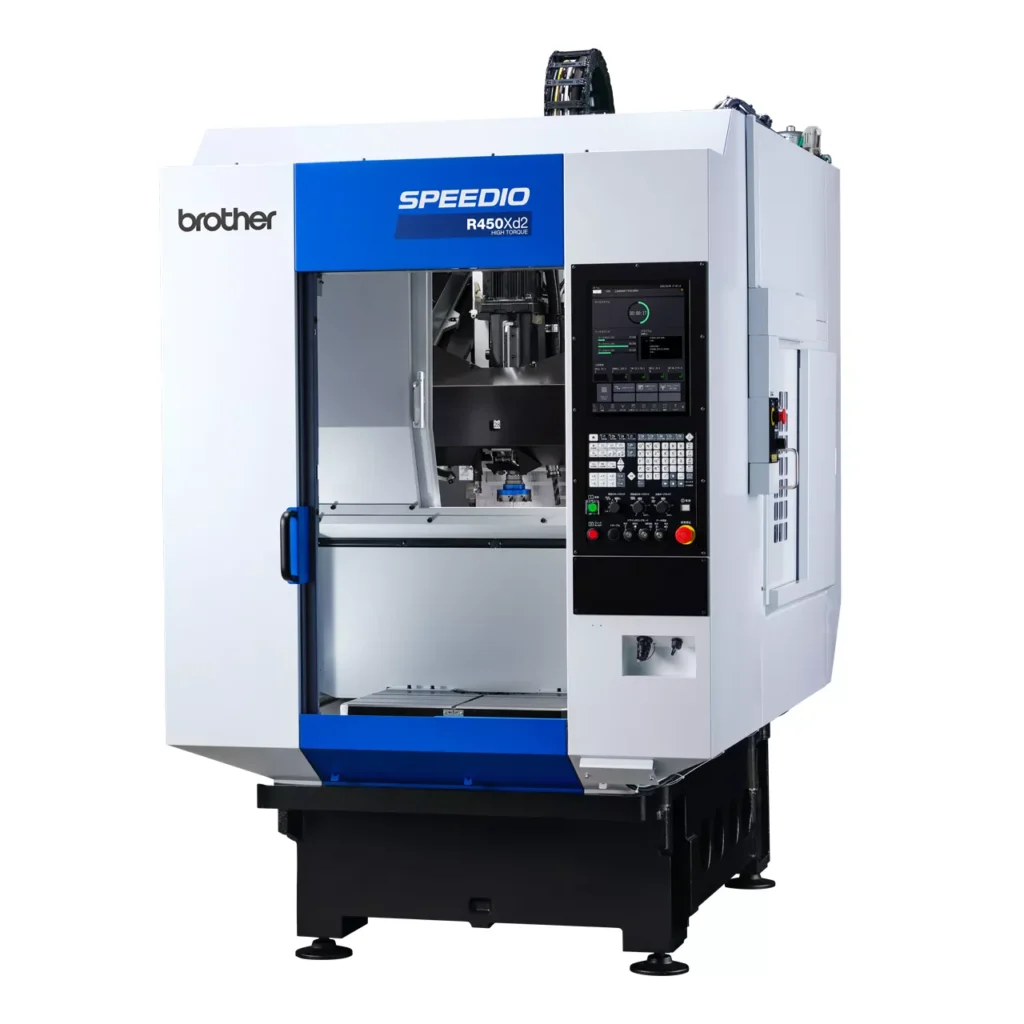

Basis-Spezifikationen
| Max. spindle speed [min⁻¹] | 12,000/ (Optional) 20,000/ (Optional) 10,000 high-torque |
|---|---|
| Travels [mm (inch)] | X: 450(17.7) Y: 320(12.6) Z: 305(12.0) |
| Tool storage capacity [pcs.] | 14/ 21/ 28 |
| Rapid traverse rate (XYZ axes) [m/min (inch/min)] | 50 x 50 x 50 (1,969 x 1,969 x 1,969) |
| Required floor space [mm (inch)] | 1,400 x 2,609 [3,448] (55.1 x 102.7 [135.7] ) |
| BT dual contact spindle(BIG-PLUS) | Optional |
| Coolant Through Spindle(CTS) | Optional |
| Low table | Optional |
Spezifikationen
| item | item | item | R450Xd / R450Xd2 RD *12 | R650Xd2 / R650Xd2 RD *12 14/22/28 tool magazine | R650Xd2 / R650Xd2 RD *12 40-tool magazine |
|---|---|---|---|---|---|
| CNC unit | CNC unit | CNC unit | CNC-D00 | CNC-D00 | CNC-D00 |
| Travels | X axis [mm (inch)] | X axis [mm (inch)] | 450 (17.7) | 650 (25.6) | 650 (25.6) |
| Travels | Y axis [mm (inch)] | Y axis [mm (inch)] | 320 (12.6) *7 | 400 (15.7) | 400 (15.7) |
| Travels | Z axis [mm (inch)] | Z axis [mm (inch)] | 305 (12.0) | 305 (12.0) | 435 (17.1) |
| Travels | Distance between table top and spindle nose end [mm (inch)] | Distance between table top and spindle nose end [mm (inch)] | 200-505 (7.9-19.9) [280-585 (11.0-23.0) *8 | 250-555 (9.8-21.8) [350-655 (13.8-25.8) *8] | 250-685 (9.8-27.0) [350-785 (13.8-30.9) *8] |
| Table | Work area size [mm (inch)] | Work area size [mm (inch)] | One face 600 x 300 (23.6 x 11.8) | One face 800 x 400 (31.5 x 15.7) | One face 800 x 400 (31.5 x 15.7) |
| Table | Max.loading capacity (uniform load) [kg (lbs)] | Max.loading capacity (uniform load) [kg (lbs)] | One face 120 (265) [200 (441) *6] | One face 200 (441) [300 (661) *6] | One face 200 (441) [300 (661) *6] |
| Table | Position time [sec.] | Position time [sec.] | 2.7 *11 | 3.1 *11 | 3.1 *11 |
| Spindle | Spindle speed [min-1] | Spindle speed [min-1] | 12,000min-1 specifications : 1 - 12,000 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 20,000min-1 specifications(Optional) : 1 - 20,000 | 12,000min-1 specifications : 1 - 12,000 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 20,000min-1 specifications(Optional) : 1 - 20,000 | 12,000min-1 specifications : 1 - 12,000 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 20,000min-1 specifications(Optional) : 1 - 20,000 |
| Spindle | Speed during tapping [min-1] | Speed during tapping [min-1] | MAX. 6,000 | MAX. 6,000 | MAX. 6,000 |
| Spindle | Tapered hole | Tapered hole | 7/24 tapered No.30 | 7/24 tapered No.30 | 7/24 tapered No.30 |
| Spindle | BT dual contact system (BIG-PLUS) | BT dual contact system (BIG-PLUS) | Optional | Optional | Optional |
| Spindle | Coolant Through Spindle (CTS) | Coolant Through Spindle (CTS) | Optional | Optional | Optional |
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | 50 x 50 x 50 (1,969 x 1,969 x 1,969) | 50 x 50 x 50 (1,969 x 1,969 x 1,969) | 50 x 50 x 50 (1,969 x 1,969 x 1,969) |
| Feed rate | Cutting feed rate [mm/min (inch/min)] | Cutting feed rate [mm/min (inch/min)] | X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9 | X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9 | X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9 |
| ATC unit | Tool shank type | Tool shank type | MAS-BT30 | MAS-BT30 | MAS-BT30 |
| ATC unit | Pull stud type *4 | Pull stud type *4 | MAS-P30T-2 | MAS-P30T-2 | MAS-P30T-2 |
| ATC unit | Tool storage capacity [pcs.] | Tool storage capacity [pcs.] | 14/22/28 | 14/22/28 | 40 |
| ATC unit | Max.tool length [mm (inch)] | Max.tool length [mm (inch)] | 200 (7.9) | 200 (7.9) | 250 (9.8) |
| ATC unit | Max.tool diameter [mm (inch)] | Max.tool diameter [mm (inch)] | 80 (3.1) | 80 (3.1) | 55 (2.1) / 125 (4.9) No adjacent tool |
| ATC unit | Max.tool weight [kg (lbs)] *1 | Max.tool weight [kg (lbs)] *1 | 3.0 (6.6) (total tool weight : 25 (55.1) for 14-tool, 40 (88.2) for 22/28 tool) | 3.0 (6.6) (total tool weight: 25 (55.1) for 14-tool, 40 (88.2) for 22/28 tool) | 4.0 (8.8) (total tool weight: 80 (176.3)) |
| ATC unit | Tool selection method | Tool selection method | Random short cut method | Random short cut method | Double arm method (random closet path) |
| Tool change time *5 | Tool To Tool [sec.] | Tool To Tool [sec.] | 0.6 / 0.7 (14-tool / 22 or 28 tool) | 0.6 / 0.8 (14-tool / 22 or 28 tool) | 0.9 |
| Tool change time *5 | Chip To Chip [sec.] | Chip To Chip [sec.] | 1.3 / 1.5 (14-tool / 22 or 28 tool) | 1.4 / 1.5 (14-tool / 22 or 28 tool) | 2.5 |
| Electric motor | Main spindle motor (10 min/continuous)[kW] *2 | Main spindle motor (10 min/continuous)[kW] *2 | 12,000min-1 specific2ations : 10.1/7.0 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 20,000min-1 specifications(Optional) : 7.4/5.1 | 12,000min-1 specific2ations : 10.1/7.0 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 20,000min-1 specifications(Optional) : 7.4/5.1 | 12,000min-1 specific2ations : 10.1/7.0 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 20,000min-1 specifications(Optional) : 7.4/5.1 |
| Electric motor | Axis feed motor [kW] | Axis feed motor [kW] | X, Y axis : 1.0 , Z axis : 1.8 | X, Y axis : 1.0 , Z axis : 1.8 | X, Y axis : 1.0 , Z axis : 1.8 |
| Power source | Power supply | Power supply | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% |
| Power source | Power capacity (continuous) [kVA] | Power capacity (continuous) [kVA] | 10.4 | 10.4 | 10.4 |
| Power source | Air supply | Regular air pressure [MPa] | 0.4 - 0.6 (recommended value: 0.5MPa *10) | 0.4 - 0.6 (recommended value: 0.5MPa *10) | 0.4 - 0.6 (recommended value: 0.5MPa *10) |
| Power source | Air supply | Required flow [L/min] | 40 | 40 | 65 |
| Machine dimensions | Height [mm (inch)] | Height [mm (inch)] | 2,584 (101.7) | 2,704 (106.5) | 2,704 (106.5) |
| Machine dimensions | Required floor space *13 [with control unit door open] [mm (inch)] | Required floor space *13 [with control unit door open] [mm (inch)] | 1,400 x 2,609 [3,448] (55.1 x 102.7 [135.7] ) | 1,830 x 3,029 [3,868] (72.0 x 119.3 [152.3] ) | 2,145 x 3,029 [3,868] (84.4 x 119.3 [152.3] ) |
| Machine dimensions | Weight (including control unit, machine cover) [kg (lbs)] | Weight (including control unit, machine cover) [kg (lbs)] | 2,750 (6,063) | 3,550 (7,826) | 4,150 (9,149) |
| Accuracy*3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)] | Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)] | 0.006 - 0.020 (0.00024 - 0.00079) | 0.006 - 0.020 (0.00024 - 0.00079) | 0.006 - 0.020 (0.00024 - 0.00079) |
| Accuracy*3 | Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | Less than 0.004 (0.00016) | Less than 0.004 (0.00016) | Less than 0.004 (0.00016) |
| Front door | Front door | Front door | 2doors | 2doors | 2doors |
| Standard accessories | Standard accessories | Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd2: 5 pcs.], leveling plate (4 pcs.) [R650Xd2: 5 pcs.] | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd2: 5 pcs.], leveling plate (4 pcs.) [R650Xd2: 5 pcs.] | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd2: 5 pcs.], leveling plate (4 pcs.) [R650Xd2: 5 pcs.] |
| Item | R450Xd2 | R650Xd2 |
|---|---|---|
| Type | 0 deg./180 deg. turntable system | 0 deg./180 deg. turntable system |
| Table dimension [mm (inch)] | One face 600 x 420 (23.6 x 16.5) | One face 800 x 535 (31.5 x 21.1) |
| Max. turning diameter [mm (inch)] | ø1,020 (40.2) [ø1,100 (43.3)] *14 | ø1,250 (49.2) [ø1,300 (51.2)] *14 |
| Max. jig height [mm (inch)] | 300 (11.8) [380 (15.0)] *8 | 350 (13.8) [450 (17.7)] *8 |
| Table work area size [mm (inch)] | One face 600 x 300 (23.6 x 11.8) | One face 800 x 400 (31.5 x 15.7) |
| Max. loading capacity [kg (lds)] | One face 120 (265) [200 (441)] *6 | One face 200 (441) [300 (661)] *6 |
| Rated table load inertia for turning axis [kg·m2] | One face 14.2 [23.5] *6 | One face 35.8 [53.7] *6 |
| Table turning system | AC servo motor(1kW) Worm gear(total speed reduction ratio:1/50) | AC servo motor(0.82kW) Worm gear(total speed reduction ratio:1/60) |
| Table position time | 2.7 *11 | 3.1 *11 |
| Table change repeatability [mm (inch)] | 0.005 (0.0002) (in the X,Y, and Z axes directions 270(10.6) from the center of rotation) | 0.005 (0.0002) (in the X,Y, and Z axes directions 335(13.2) from the center of rotation) |
| CNC model | CNC model | CNC-D00 |
|---|---|---|
| Control axes | Control axes | 7 axes (X, Y, Z, four additional axes) |
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, A, B) |
| Simultaneously controlled axes | Interpolation | Linear : 4 axes (X, Y, Z, one additional axis) Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
| Least input increment | Least input increment | 0.001 mm、0.0001 inch、0.001 deg. 0.0001 mm, 0.00001 inch, 0.0001 deg. (optional) |
| Max.programmable dimension | Max.programmable dimension | ±999999.999 mm, ±99999.9999 inch ±999999.9999 mm, ±99999.99999 inch (optional) |
| Display | Display | 15-inch color LCD touch display |
| Memory capacity | Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank) |
| External communication | External communication | USB memory interface, Ethernet, RS232C (optional) |
| No.of registrable programs | No.of registrable programs | 4,000 (Total capacity of program and data bank) |
| Program format | Program format | NC language, conversation (changed by parameter) Conversation from conversation program to NC language program available |
| Operation | Dry runMachine lockProgram restartRapid traverse overrideCutting feed overrideBackground editingScreen shotOperation levelExternal input signal keyShortcut key < optional >Spindle override |
|---|---|
| Programming | Absolute / IncrementalInch / MetricCoordinate system settingCorner C / Corner RRotational transformationSynchronized tapSubprogramGraphic display |
| Measurement | Automatic workpiece measurement *1Tool length measurement |
| High speed and high accuracy | Machining parameter adjustmentHigh-accuracy mode AIIIHigh-accuracy mode BI (look-ahead 160 blocks)Backlash compensation < optional >High accuracy mode BII(Look-ahead 1,000 blocks, smooth path offset) |
| Monitoring | Machining load monitoringATC monitoring *4Overload predictionWaveform display / Waveform output to memory cardAutomatic thermal distortion compensation (X, Y, and Z axes)Production performance displayTool life / Spare toolStuck chips detection function *4 |
| Maintenance | Tap return functionStatus logAlarm logOperation logMaintenance noticeMotor insulation resistance measurementTool cleaning filter with filter clogging detectionBatteryfree encoderBreake load test |
| Automatic / Network | Computer remoteOPC UAAuto notificationBuilt-in PLC (LD/ST/FBD) < optional >CC-Link, master stationCC-Link, remote device stationPROFIBUS DP, slaveDeviceNet, slavePROFINET, slaveEtherNet/IP, slave |
| Energy saving | Automatic power offStandby modeAutomatic coolant offAutomatic work light offChip shower off delayChip shower energy savings operationEnergy savings mode |
| Support apps | Adjust machine parametersATC toolTool lifeWaveform displayProduction performanceEnergy saving/Power consumptionRecovery supportInspectionPLCMachining support without warmupSoftware control panel |
| Accessories | File viewerNotebookCalculatorRegister shortcutDisplay off |
| Functions limited to NC language | Menu programmingLocal coordinate systemExpanded workpiece coordinate systemOne-way positioningInverse time feedProgrammable data inputTool length compensationCutter compensationScalingMirror imageExternal sub program callMacroTape operation / FTP load operationMultiple skip function < optional >Submicron command *2Interrupt type macroRotary fixture offsetFixture coordinates setting *3Involute interpolationVibration adjustment |
| Functions limited to conversation | Operation programSchedule programAutomatic tool selectionAutomatic cutting condition settingAutomatic tool length compensation settingAutomatic cutter compensation settingAutomatic calculation of unknown number inputMachining order control |
Highlights
QT Table QT table achieves high productivity, eliminating waste in workpiece change time
The QT table is Brother’s original high-speed 2-face pallet changer.
With a wide jig area and a high degree of reliability, the QT table enables non-stop machining to achieve high productivity.
Productivity Magazines with extensive variation Overwhelming high productivity through machine/controller integrated development
The broad range of magazine specifications for 14, 22, 28, or 40 tools supports a variety of machining needs.
Overwhelming high productivity is achieved by utilizing advantages of machine/controller integrated development, including optimized and faster simultaneous operation and tool change operation.
Machining Capability Provides broad cutting performance from high-speed and highly efficient machining to heavy-duty machining
High rigidity based on a special design and use of a high-torque spindle motor achieves stable machining while demonstrating high machining capability.
Operability Improved ease of setup and workpiece change Improved operability using “CNC-D00” controller equipped with support functions
Enhanced accessibility and operability from the front and side allow operators to easily perform setup tasks like switching workpieces or tools.
Various support functions improve work efficiency and overall productivity.
